WORK HOLDING COMING FOR POCKET NC
KOPF PNC Fixture System
I've been hard at work on my spare time designing this fixture interface for the Pocket NC. Expect to see real parts in action soon and more features! |

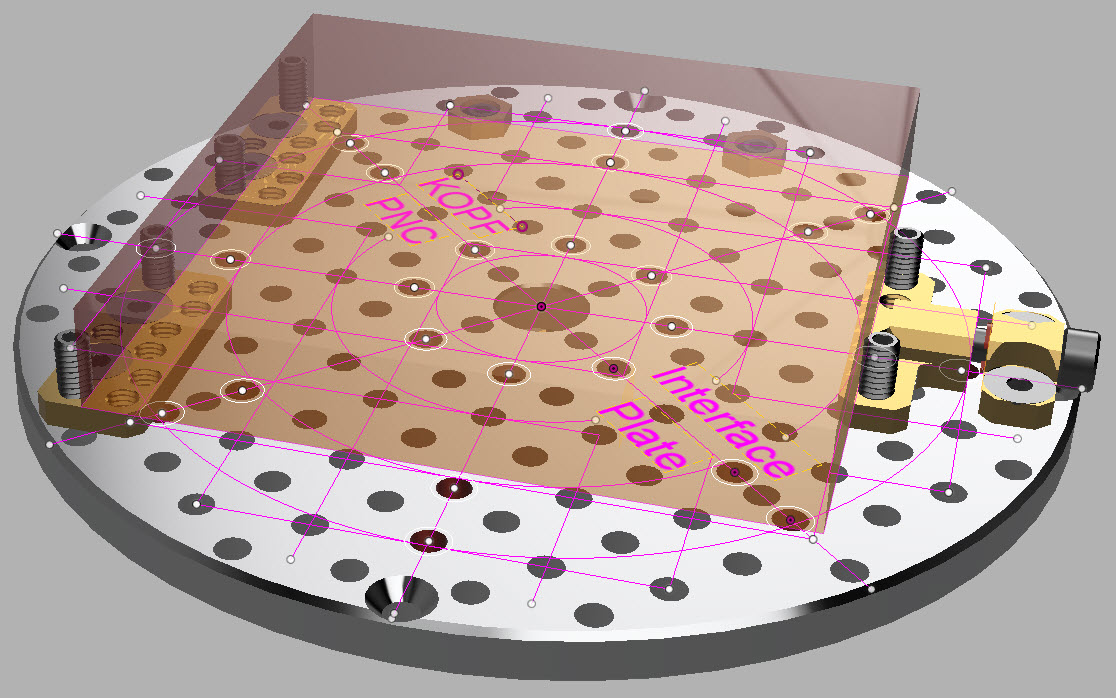

| KOPF PNC FIXTURE SYSTEM - PARTIAL CONCEPT SHOWN |
KOPF PNC Keyless Chuck - Perfect for Ring Machining
Workholding is always a challenge for machining. This design is a similar concept to the PNC Vise supplied with the Pocket NC. But this expands the entire table into a work holding system. It's easy to adjust the location to accept any size work piece. And it can clamp pretty much any shape stock square, rectangle, round or oblique. Inside and Outside force. It's simple to relocate these clamps anywhere on the table.
 |

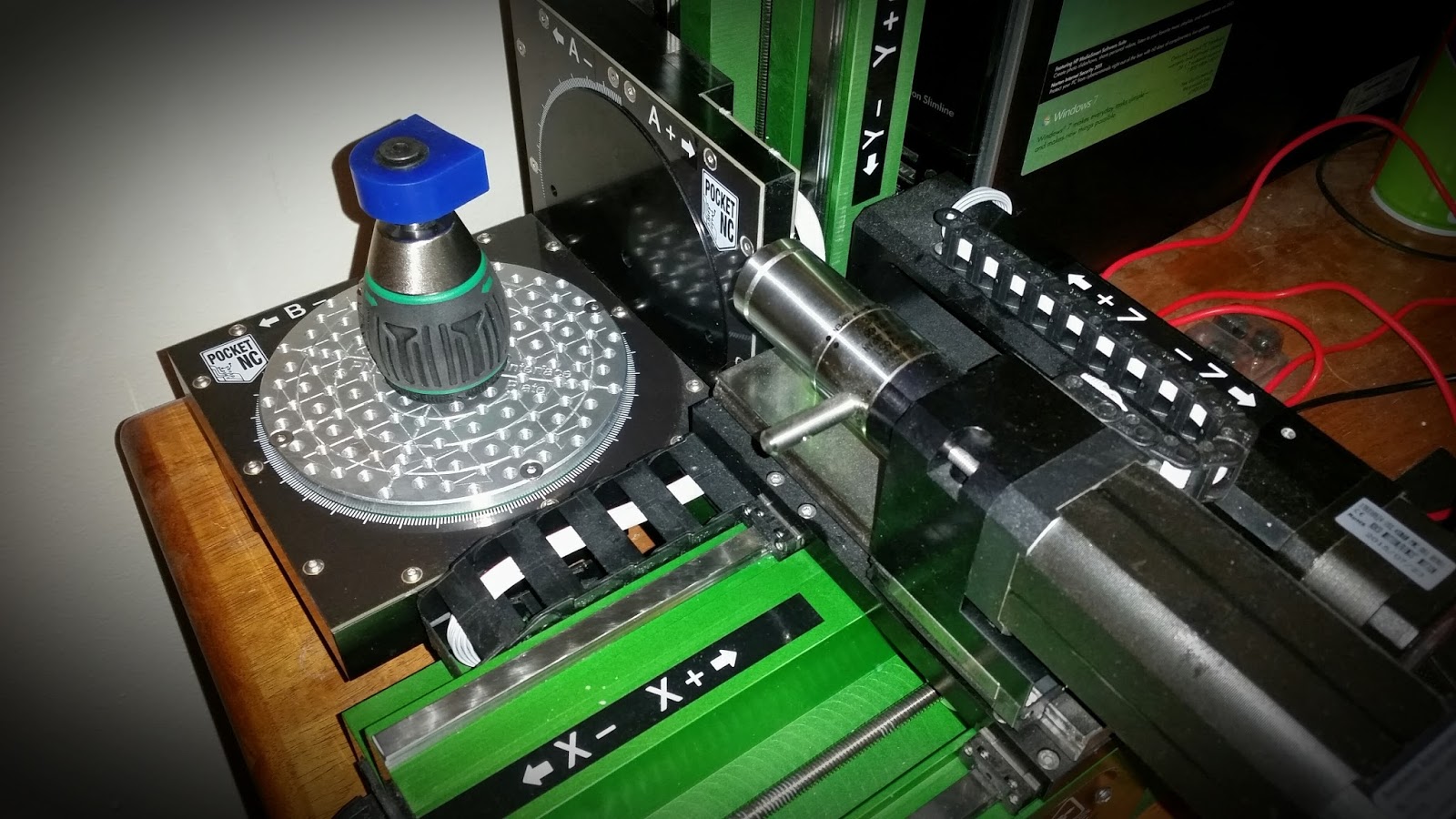

| Ring Blank on KOPF PNC Fixture Plate (Note Drive Axis Labels, Oops Z label was on backwards I've since fixed that haha) |
